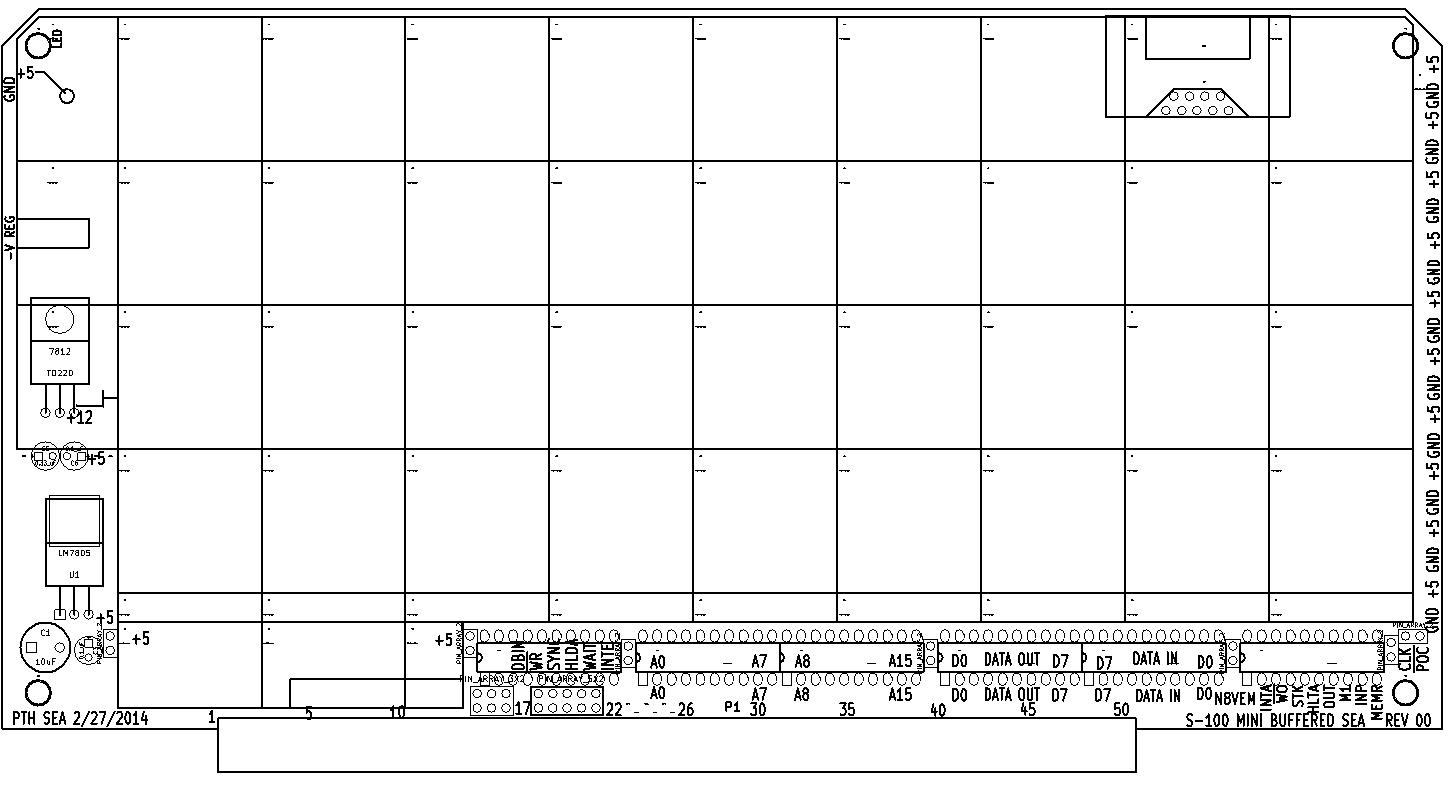

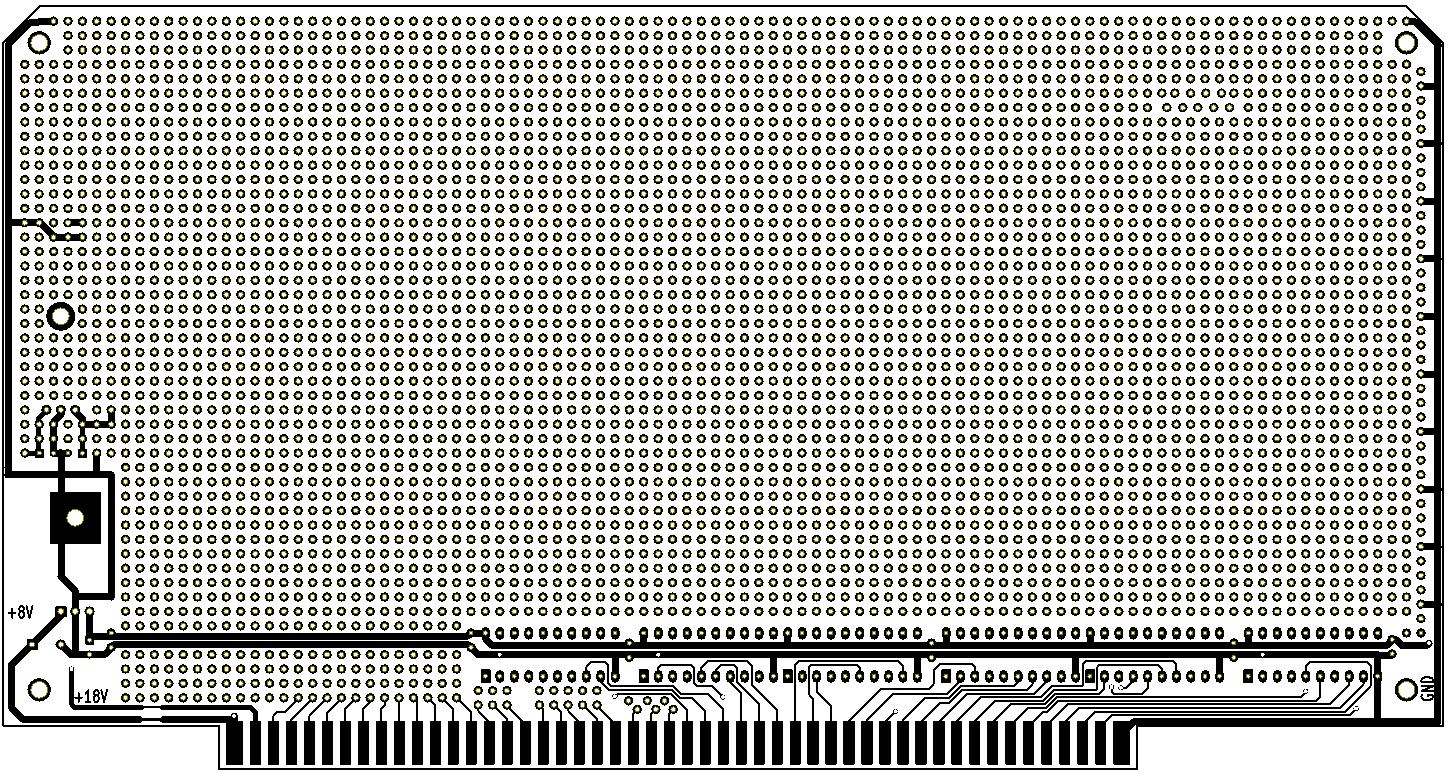

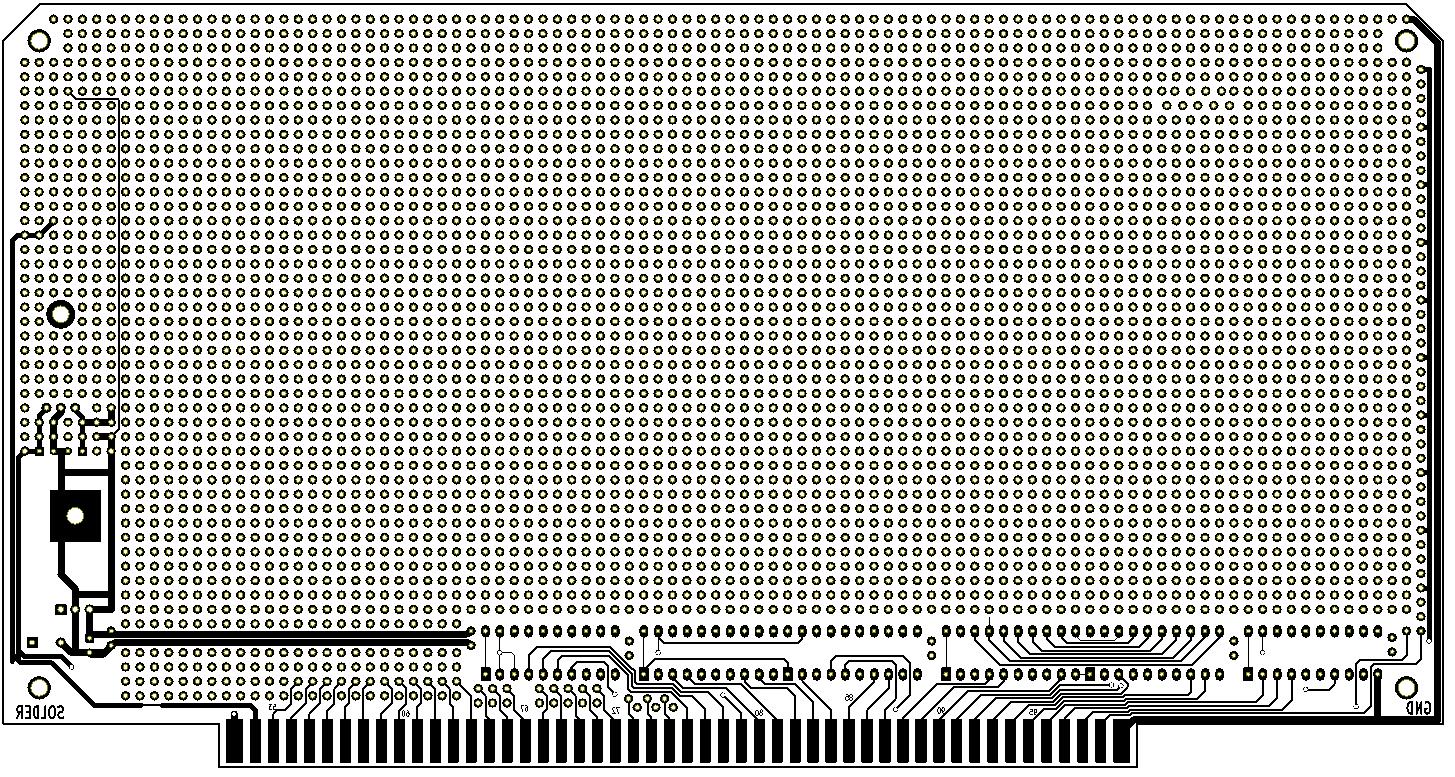

I'm ready to go for a run of these Mini-buffered Prototyping boards.
Shipping varies. But you have 2 options. I can ship up to 5 boards in a box from Canada for $16 (flat rate small package)
or you can wait until Mid-April, I can cross the boarder and ship in strong cardboard envelopes at Andrew's rates.
I want to get some pre-orders, before making the run.
Date: Sun, 2 Mar 2014 09:56:43 -0500
Subject: Re: [N8VEM-S100:2601] Re: Board Run: Unbuffered Prototyping
I very much like what you'd done with the sea-flow.
Personally, I'd never put a DBxx directly on an S100 board. Instead use an IDC-type cable with a 2xN connector and ribbon . The DBxx belongs on the bulkhead. So I'm not enthusiastic about that change.
As for the LED, perhaps a placement consistent with what's used on the 80286 master/Slave CPU Board would avoid the (potential) card ejector handle. Or maybe just scrap it and let folks wire what they want, if they want anything at all? After all, they'll probably be bringing PWR/GND "around" for ICs anyway. So let them wire-where-they-will, rather than committing to that corner? (OTOH, they can always just cut the trace ...)
On Sat, Mar 1, 2014 at 11:12 PM, Crusty OMO <crus...@hotmail.com> wrote:
