Intersystem's PROM Card.

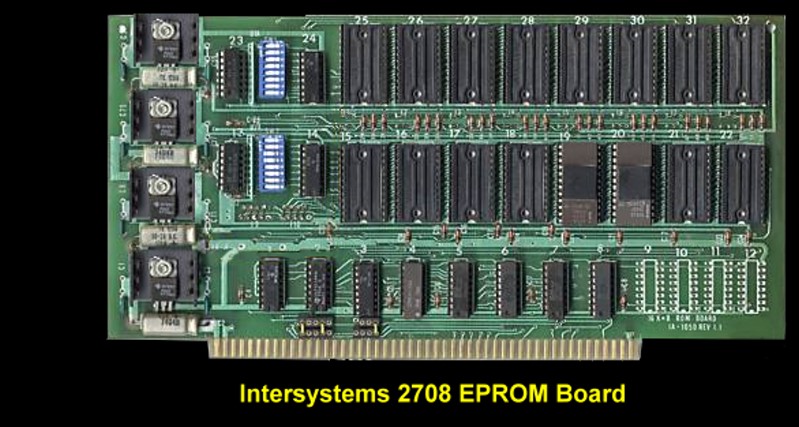

This was Ithaca Audio's (later known a Intersystems) EPROM card.

Intersystems -EPROM Card

The card was designed to take sixteen 2708 or 2716 EPROMS, a first at the time (1977). Each ROM  chip on the board could be individually addressed and up to 4 wait states could be added to the bus.  Unused sockets did not block out the memory address space. Fully loaded the board drew about 320mA.  There were voltage regulators for -5V and +12V for Intel 2716 EPEOMS. If 2708 EPROMS are used then only a single regulator (bottom left) is required.

The manual for this board can be obtained here.
