CompuPro - Disk 1B
The Disk 1B was as you might expect an upgrade of the original Disk 1A. It was a late CompuPro board comming out in 1986 when the company was known a Viasyn. It still used an Intel  8272 or NEC 765A floppy disk controller instead of a at the time, then more common Western Digital 1791-7 chips.

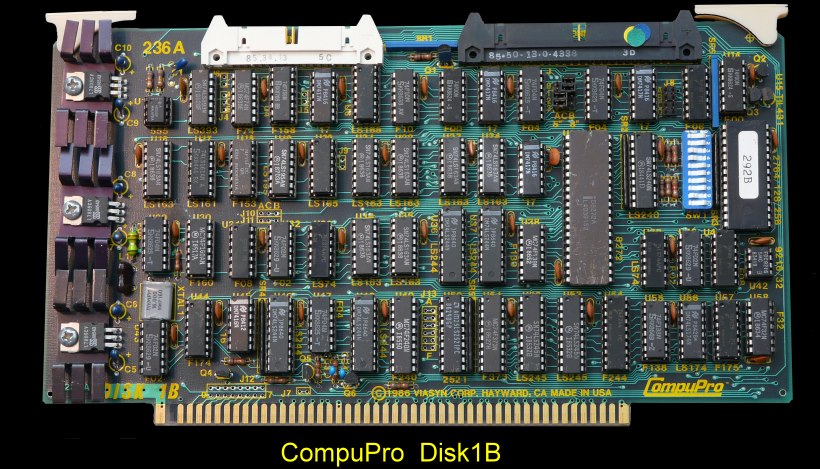

CompuPro 1B

What was interesting about both the Disk1 and 1A and 1B was that the boot ROM had code which via a switch selection could be used to work with either a 8085/Z80, a 8088/8086/80286, a 68000 or a 32016 CPU based system. The board handled data transfers via 24 bit DMA with the ability to cross 64K boundaries.  There was a priority arbitration scheme for the on-board DMA circuitry that will allow up to 16 temporary bus masters to operate without conflict.  There was an advanced digital data separator for reliable data transfers. No cap or resistor adjustments etc. were required. The board had provisions for running both 5.25" and 8" floppy drives at the same time.
I cannot locate a manual for this board but presumably it is close to that of the Disk 1A
