Cromemco 32K Bytesaver Board
This was the next extension of the popular 8K Bytesaver & Bytesaver II.

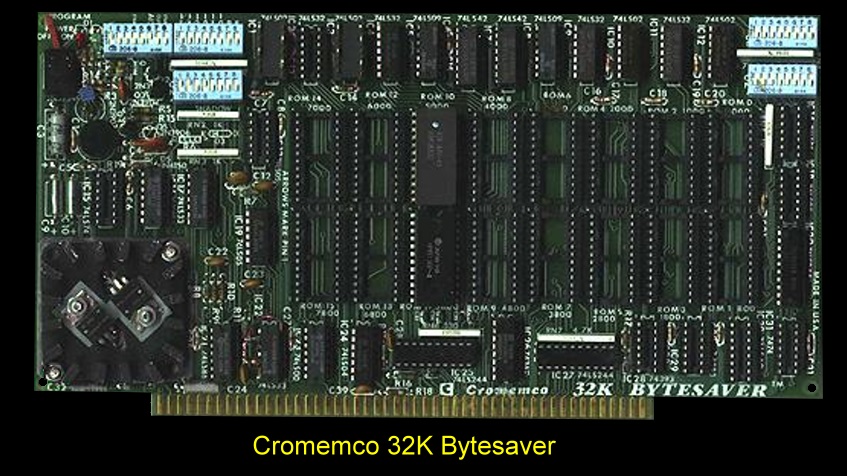

32K Bytesaver

The board provided space for 16 2716 type 2048-byte erasable PROMs.  Like other Cromemco memory cards, the board operated at 2 or 4 MHz (user-selectable), without wait states, in the usual sequential addressing class of operation.  The board had Cromemco style bank select caoability allowing memory expansion beyond 64K. ROM shadowing allowed external memory to overlap portions of the 32K bytesavers address space.  PROM burning was precicely controlled using an onboard pulse with control circuit.
The manual for this card can be obtained here
