With time people started filling up the real estate on the CPU board
with extra components. Such as jump on reset circuits to specific
memory locations, ROM's, I/O ports, diagnostic LED's, interrupt
controllers and when 16 bit data bus and 24 bit addressing appeared
modifications to make them IEEE 696 compatible. An excellent
example of a board like this is the Ithaca Intersystem's CPU board.
This is the CPU board I have used in my homebrew system. The board
is completely IEEE 696 compatible allowing one to actually address
1MG of system RAM. It has an on board interrupt controller and onboard
As with the above CPU boards the early S-100 memory boards were

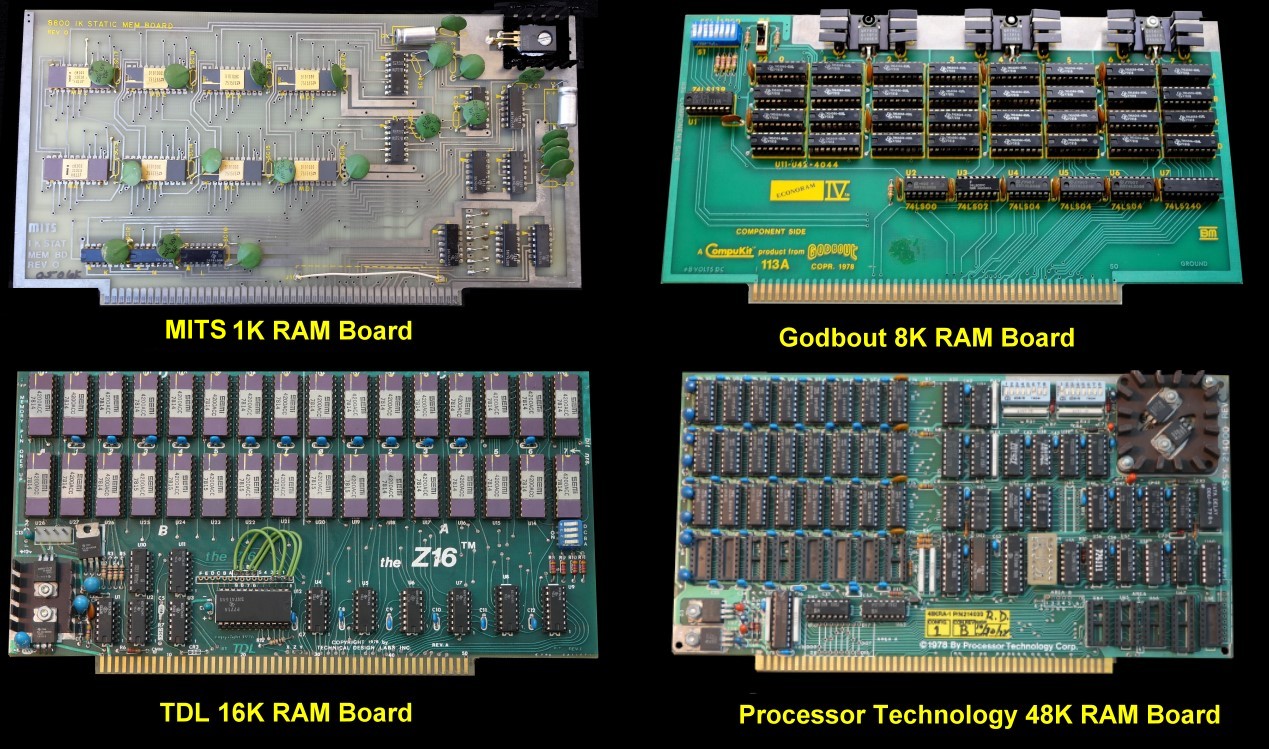

very basic. All utilized static RAM chips. The figures below show
pictures of the original Altair and IMSAI RAM boards. Because the
early CPU's ran at a slow 2MHz clock speed they were simple to construct
and were consequently quite reliable. The late 1970's
was a time of rapid development of RAM chips. 1K, 2K, 4K, and 8K
boards proliferated. Soon people started to look seriously
at using dynamic RAM memory chips for the S-100 bus. After a few
early boards which had compatibility problems they gradually became
as reliable as static RAM boards. There were eventually
a number of these boards. Probably one of the most successful was
the SD Systems ExpandoRam board. This held what seems like
an enormous block of memory at that time (16K). This was latter
improved upon to the enormously popular 64K dynamic memory board.
There were probably more of these boards sold than all other 64K
RAM boards put together at the time. A picture of the board is shown

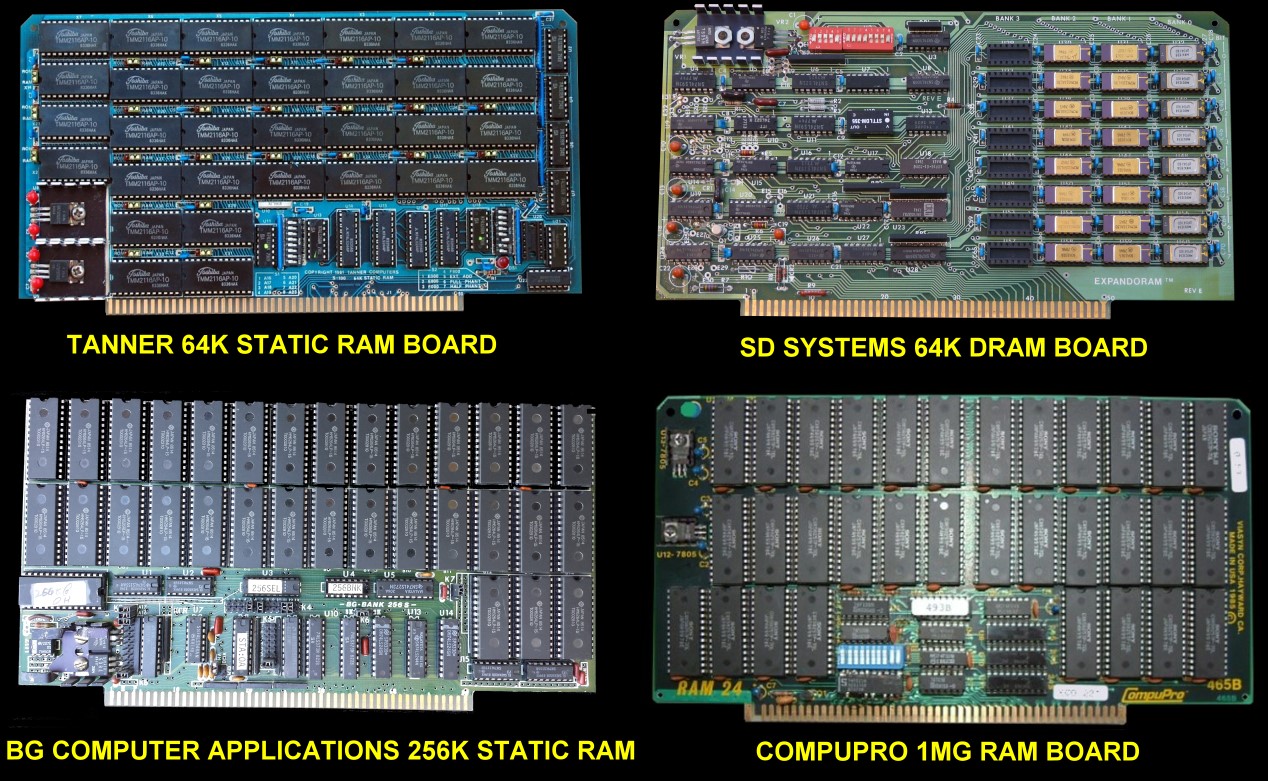

in figure 15. Later, 64k boards became common in both static
and dynamic forms. Later still 256K memory boards (see below)) started
to appear. Static memory came down in price in the early 1980's
so many people switched to using static RAM memory boards. The difficulty
of refreshing dynamic memory in an 8/16 bit dual CPU system was
simply too much trouble. By 1985 it became common to see S-100 systems
with over 500K of memory.

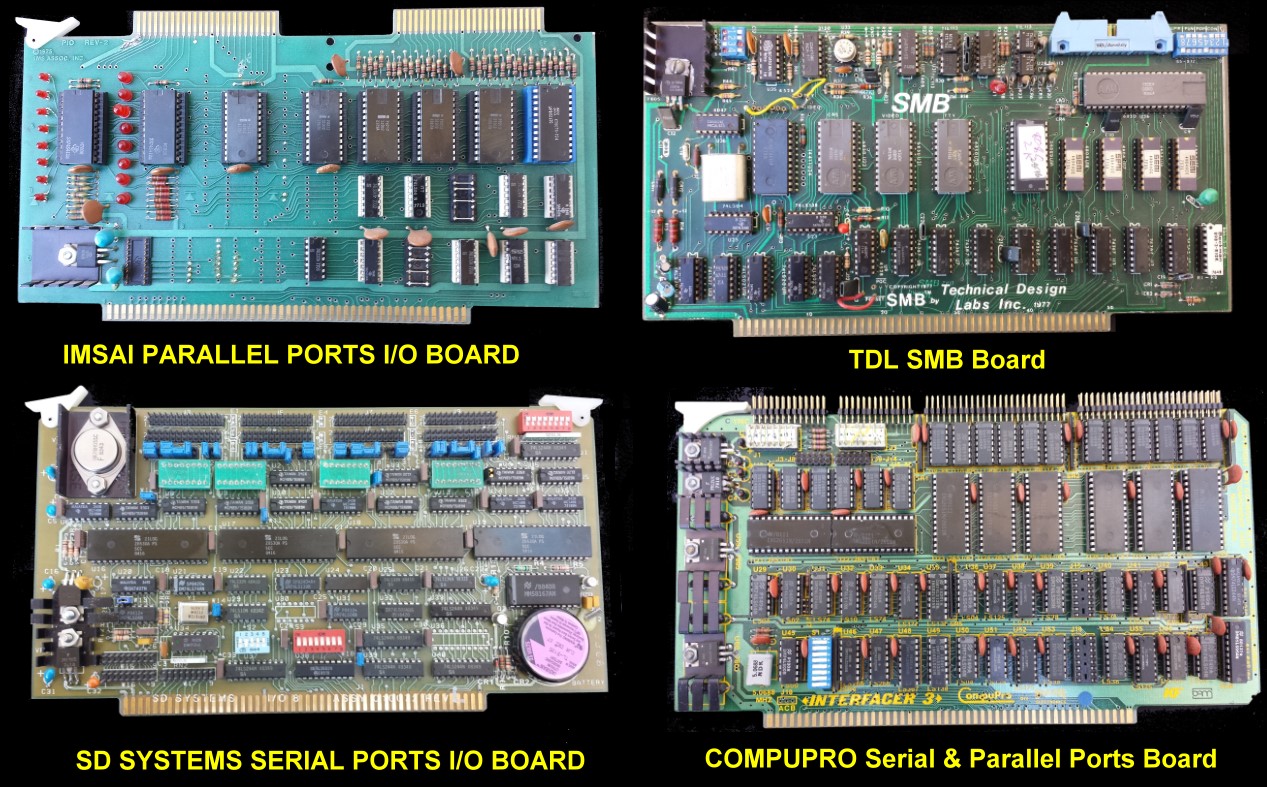

Clearly in all but the simplest applications you
are going to have to get data into and out of the computer. From
the start of the S-100 bus era a whole proliferation of I/O boards
started to appear. Early S-100 boards where simply parallel, or
serial (RS232) port boards. Then both started to appear on the same
board. Typical later boards had 1, 2 or 3 serial ports along with
a few parallel ports. Later more sophisticated boards started to
appear. A major milestone in those early days was the TDL "System
Monitor Board". This board ,with a CPU board, gave you a complete
functional system. It had a ROM monitor to take care of all software
I/O and system initialization. It had 3 serial RS232 ports, a parallel
port (for a printer) a cassette interface to read and store data
on tape as well as 4K of static RAM. It was the first real
example of having software redirecting computer I/O via an "IOBYTE"
to different ports. A guy named Roger Amidon in 1976 wrote the Zapple
Monitor for the ROM which in countless other situations was used
and modified as the basic S-100 startup monitor. The board was way
ahead of its time.
With time quite elaborate I/O boards started to appear for the bus.
Following the TDL example most combined serial and parallel
ports on the one board. The Z80 and 8080 allows for only 64
IO ports. One issue that soon started to appear was finding a "block"
of ports on the bus for a new board that did not overlap with other
boards. It became quite important to have a flexible and movable
I/O ports addressable setup. Perhaps the most elaborate example
of I/O port flexibility was the Morrow "Multi I/O board".
You addressed one port on the board which then bank selected other
ports on the board in software. Unfortunately the thing was so complicated
that few spent the time figuring the thing out. Nevertheless the
board was extremely powerful.. It had 3 serial ports, one parallel
port, a timer/clock chip and a interrupt controller chip.
The Cromemco TU-ART dual serial and parallel board was an example
of a board that while powerful requited a lot of IO ports. Another
popular board was the Victor Graphic "ByteStreamer". It had
three serial ports and two parallel ports.
The other way these computers were configured
to talk to you was to use a video display board to display
the information and input the data from a serial or (more common)
a parallel keyboard driven port. These boards were typically
a bit more complex that some of the above early boards because even
in the late 70's CRT controller chip like functions had to be implicated

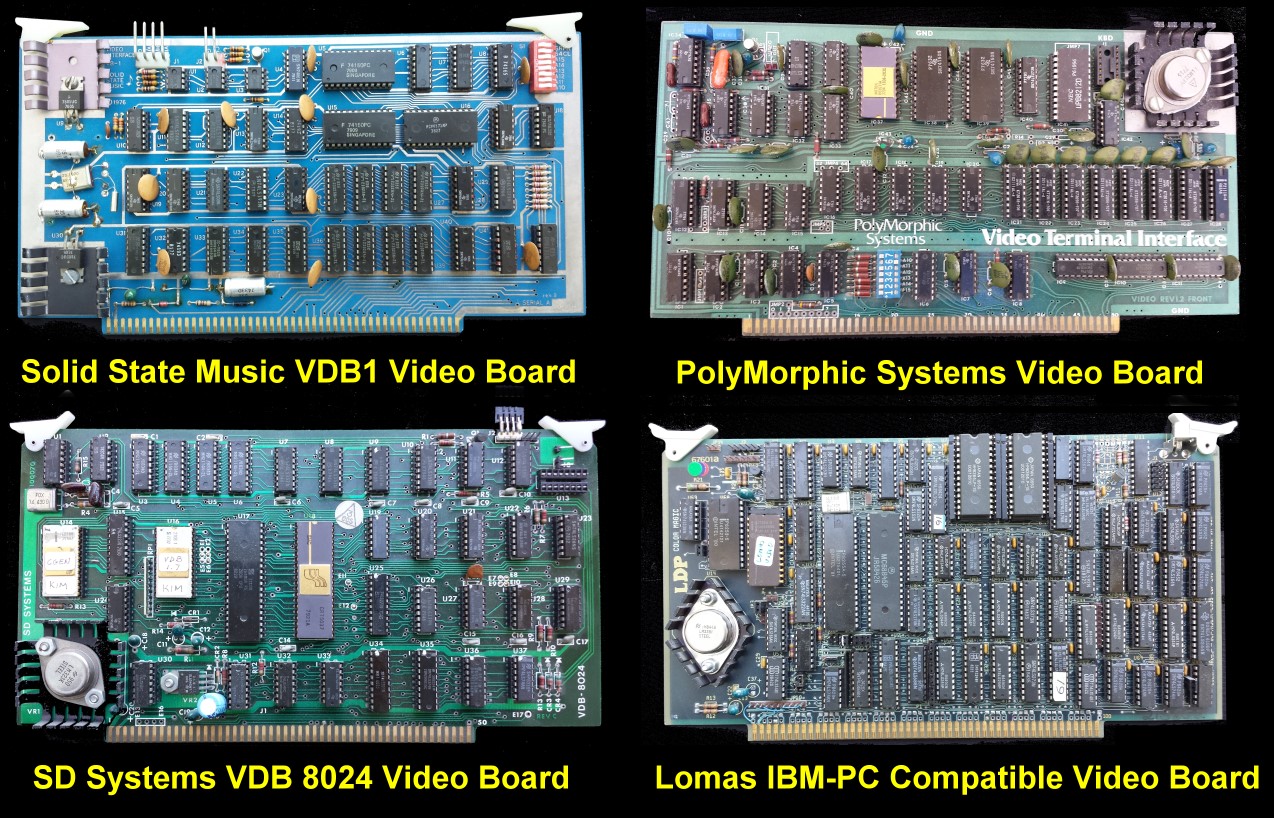

with 7400 TTL chips. A popular video S-100 display board was
one made by Solid State Music called the VB-1. The board was
memory mapped meaning that when characters were placed in a certain
region of the S-100 CPU's 64K memory space they appeared in the
video produced by the board. This allowed fast (but primitive) B&W
games to be played. A color output equivalent of this board was
the Cromemco Dazzler board. It was an amazing implementation
of TTL logic on a 2 piece S-100 board system. Indeed it was
quite a few years before any other equivalent color video board
could match this Cromemco board. Unfortunately these boards were
not capable of displaying more than 64 characters per line on the
CRT. The real world for text required 80 characters per line
and at least 24 lines per CRT display.
A somewhat later but very popular display board matching these parameters
was the SD Systems 8024 video board. As shown above. This S-100
board had it's own CRT controller and character generator chip set.
It was I/O mapped, meaning that from a software point of view for
the S-100 CPU, it communicated over a set of ports as if it was
an external CRT terminal. Towards the end of the S-100 bus era quite
sophisticated video boards started to appear. A popular one was
the Lomas data "Color Magic" board. This board contained an IEEE
969 24 bit addressable memory mapped video that was completely compatible
with the IBM-PC CGA video board. It also had an IBM-PC compatible
keyboard port and interrupt controller on board.
Cassette Controller Boards
Early S-100 computers loaded and stored data on common cassette
magnetic tapes. The TDL System monitor described above for
example had the hardware to do this. However this system was finicky

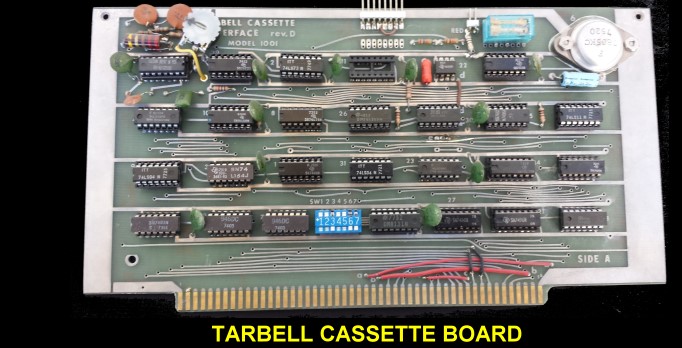

and was never real popular. A very popular dedicated S-100 board
for reading and writing to a cassette was one made by Tarbell.
It was almost universal in its acceptance and quite reliable.
These days when I download from the web a 10MG file in seconds I
sometimes reflect on the time and tension one experienced when downloading
a 100K file on a cassette from a friend. Taking many minutes (and
sometimes try's) to do in those days. Other tape controller
boards did exist but none as popular as the Tarbell. For a
brief period of time even commercial software was sold in "Tarbell
Floppy Disk Controller Boards
When Shugart brought out the first 5" floppy
disk drives and it became commonly available to S-100 users the
world of data storage changed forever. IBM and others already
had 8" floppy disk drives and they were becoming more prevalent
for those that could afford them, but the 5" floppy was much cheaper.
What was needed was a S-100 board to read and write to these drives.
Two early formats of disk drives emerged. One was a disk controller
by Northstar. This controller board consisted of many 7400 type
TTL discrete logic chips. It required a "hard sectored" disk, meaning
the disk had many holes, one for each track sector. It was reliable,
simple and popular for a time. However with the availability
of LSI floppy disc controllers such as the 1771 and 1791/1795 by
Western Digital all this changed. Very reliable high density floppy
discs could be easily read and written to with S-100 boards that
utilized these chips. Further the disks were a single index
hole soft sectored type allowing a proliferation of many disk formats.
An extremely popular and reliable floppy disk controller of this
type was the SD Systems Versafloppy II disk controller. The
controller worked with both 8" and 5" drives in single and double
density formats. However in the end almost every major S-100 manufacturer
had their own disk controller.
Other popular floppy disk controller S-100 boards were those by
CompuPro and Cromemco. These types of boards represented to some
extent the apex of the S-100 board era. They were quite complex
for their time. Made good use of the boards real estate and were
Hard Disk Controllers
Next came hard disks as the medium of storing data in S-100 based
computers. I remember well the day I installed my first 5 MG Shugart
hard disk. And how I marveled at all that storage space! S-100
controller boards for hard disks were initially slow in coming.
There was no equivalent of the 1771 or 1791/95 controller chips.
Furthermore these early pre IBM-PC, MFM encoded drives did not have
a disk controller on the drive (as current IDE, SATA etc. drives
have). Everything had to be done in 7400 based TTL logic chips and
software. Eventually however hard disk controller boards came.

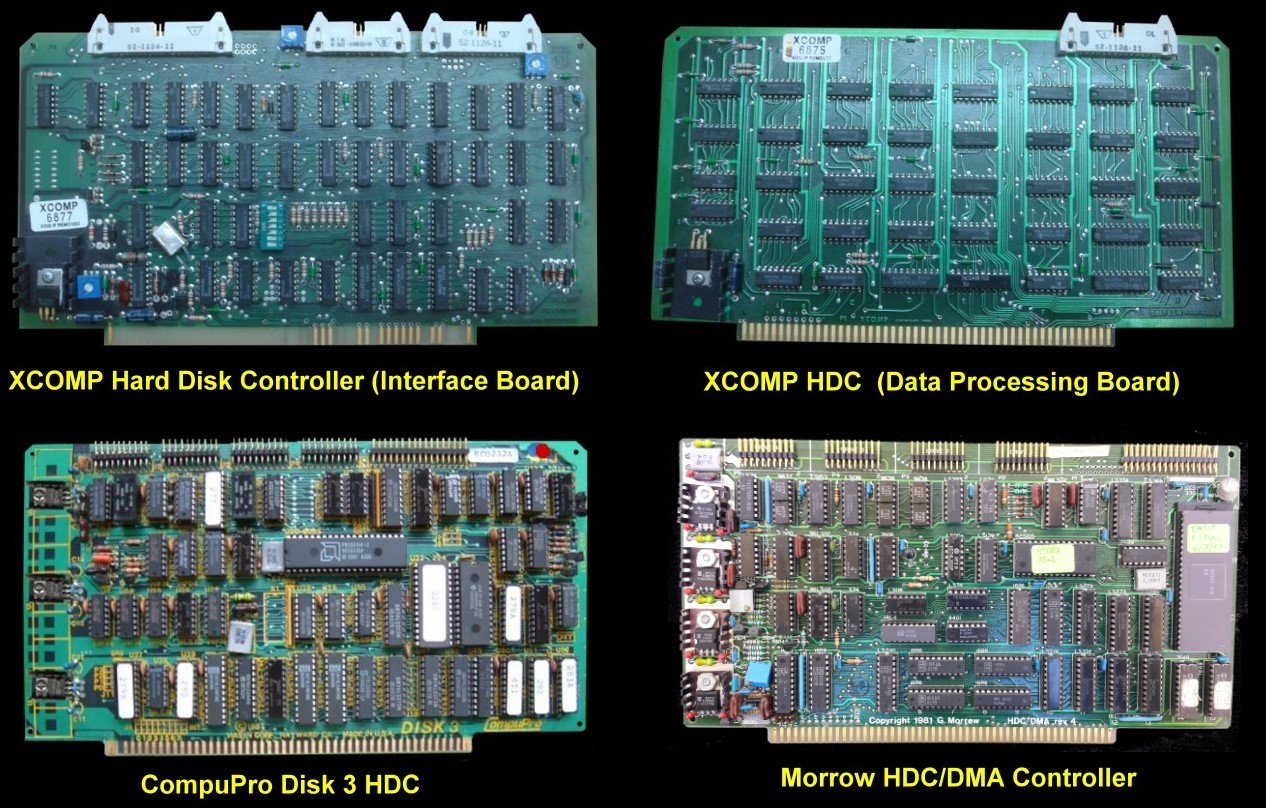

One very good and reliable board (actually two S-100 boards joined
via an overhead connector), was the XComp disk controller board.
This board set is shown below. The board could control both 8" or
the soon to become more common 5" drives.
Front Panel Board
While not strictly essential, a front panel
control board makes life much easier when building an S-100 system.

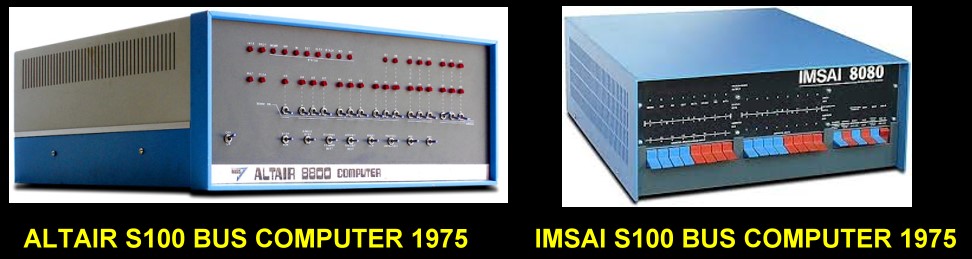

Some early systems came with one already built in. The best known
being the classical Altair and IMSAI computer system front panels.
These boards via the numerous switches allowed the operation to
do things like examine a memory location or port, alter the values
there, or "single step" the CPU one instruction at a time through
memory. Historically the front panel also generated the S-100
memory write signal (pin 68) by combining the status line sOUT and
the line pWR*. Later CPU boards of course moved this function to
their CPU board. You should always check this however and make sure
there are not two memory write signals being generated on the bus.
This still remains one of the most embarrassing aspects of the S-100
Bus. There is no reason why the memory write signal should be treated
any different to other bus signals generated by the CPU or slave
controller. I have spent some time with my own homebrew system
putting together a more modern front panel board that is IEEE-696
compatible and controls the bus and displays the program counter
etc. in HEX display LED's. This will be described elsewhere on this

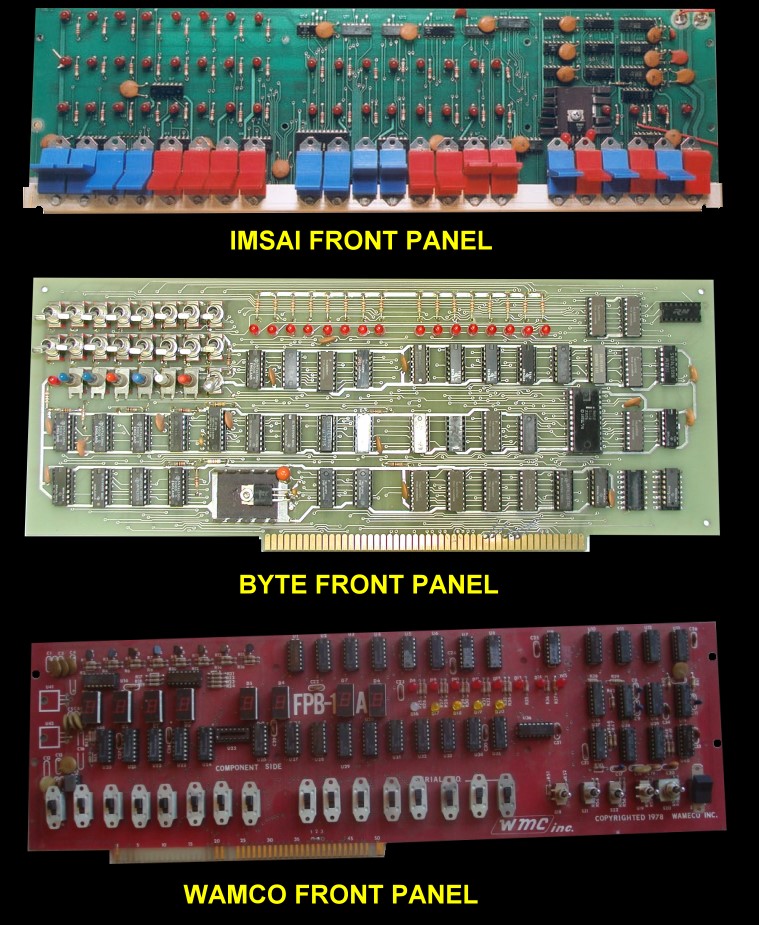

site. The Wamco front panel shown below was a particularly
good board and is described in more detail
S-100 Computers Today

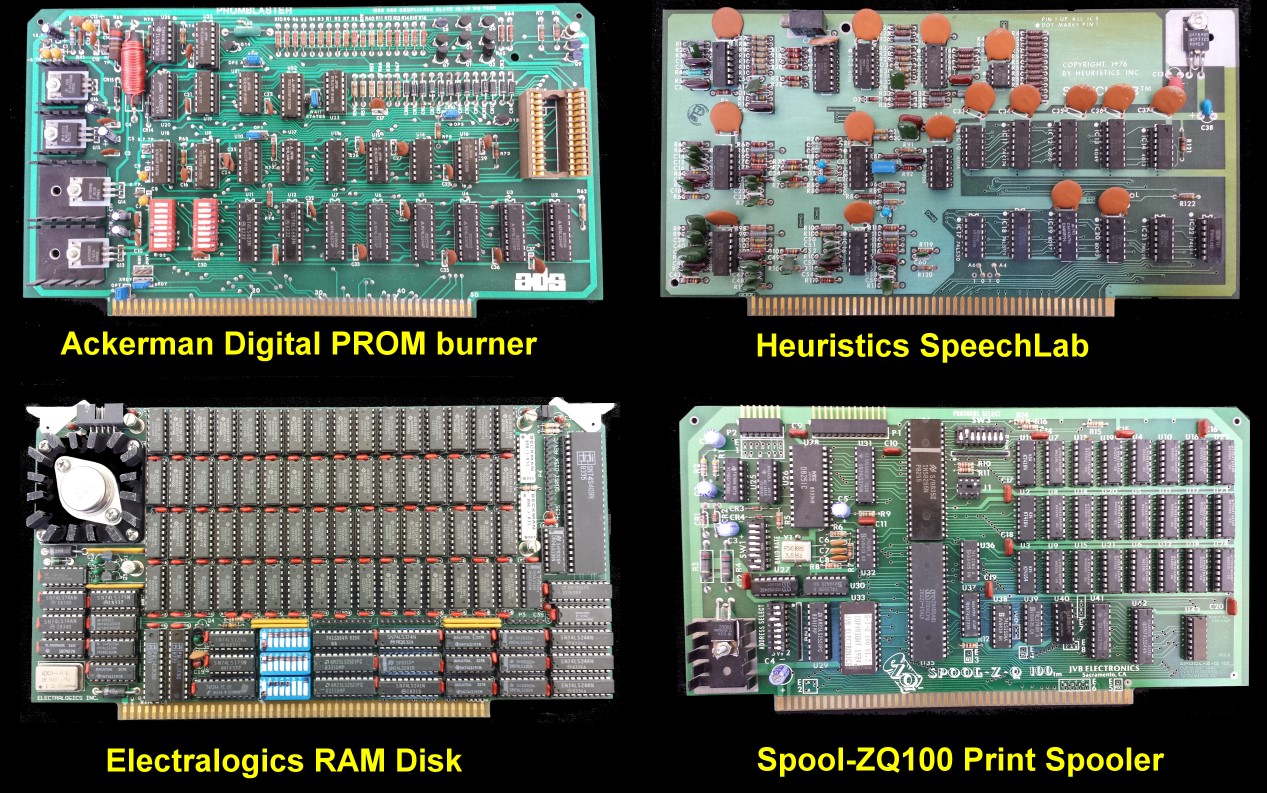

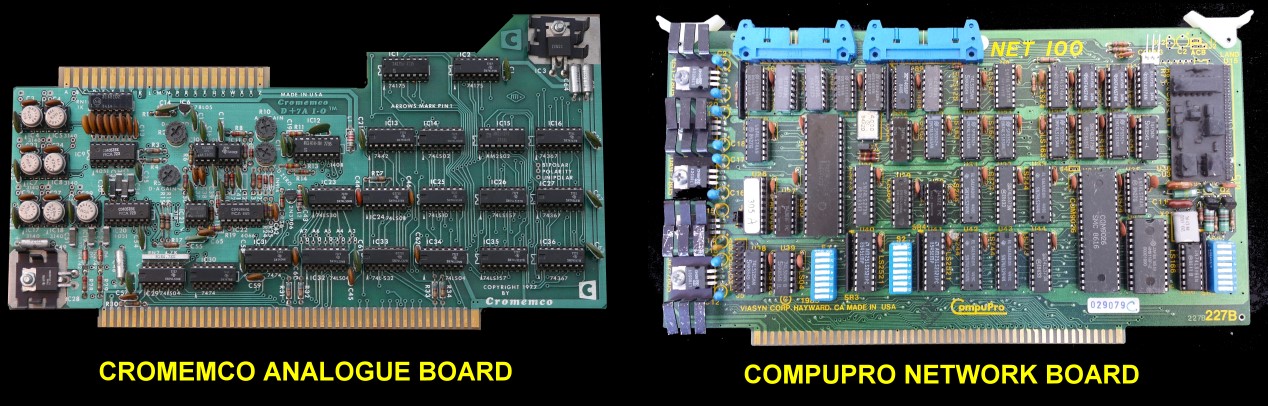

Over time many specialized S-100 boards appeared.
These included modem boards, math processor boards, speech synthesis
boards, time clock boards, and many relay control I/O boards. Towards
the early 1980's with the approval of the IEEE 969 standard, S-100
bus boards had become very sophisticated allowing multiple 8 and
16 bit CPU's on the bus and clock speeds of up to 5MHz and above.
S-100 based computers do not exist commercially. Technology
has moved on. CPU clock speeds are now in the GHz range rather that
the 2-5 MHz ranges. 32 and 64 bit systems are the standard and computer
buses it they exist at all on a home computer systems are orders
of magnitude faster and more complex. Nevertheless there is
a growing number of amateur computer collectors and hobbyists that
collect and maintain S-100 based computers much as veteran car collectors
and hobbyists work with cars of the by-gone ages.
This web site is one of a number that shares
this passion. It is by no means inclusive, it is however the effort
of one person to share with others the magic of those early days
and reinvent the spirit.
There is now a new Google Groups forum to discuss new S100 boards
described on this web site.
If you have questions about a board or wish to get on the list
for a new board please feel free to join and participate here:-
As a last resort you
can reach me via e-mail at:-
(Substitute the "-" character with an @ character).
This page was
last modified on
